Unity™ 4G Enterprise Femtocell

Unity™ 4G Enterprise Femtocell Specification is an integrated base station based on LTE technology, which supports access to the backbone network through wired backhaul, provides LTE access for terminals, completes voice and data service transmission, and realizes indoor Wireless broadband coverage.

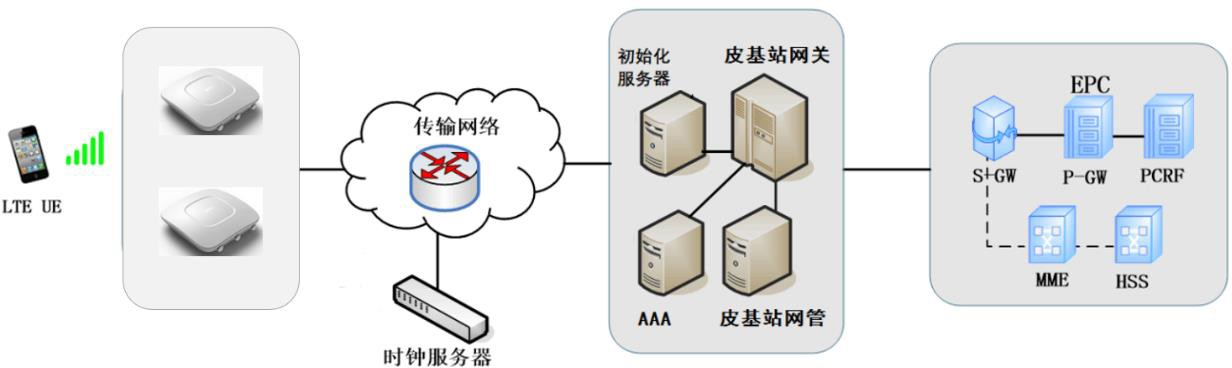

Unity™ 4G Enterprise Femtocell Specifications are usually connected to the LTE core network through a non-secure domain; the network management system centrally manages the equipment; the security gateway implements data packet encryption, and the connection between the base station equipment and the core network must pass through the security gateway through a The ingress gateway (GW) completes the relay between the base station equipment and the MME/SGW, completes the convergence of the signaling plane, and reduces the impact on the core network. Figure 1-1 shows the networking structure of an 4G Enterprise Femtocell Specifications accessing an LTE network.

• Highly integrated baseband and radio frequency design.
• Based on 3GPP LTE FDD technology, it provides high-speed data services.
• Support 5MHz, 10MHz, 15MHz, 20MHz working bandwidth.
• Convenient networking, plug and play, flexible deployment.
• On-demand integration can achieve accurate coverage and quickly increase the capacity of the existing network.
• Built-in DHCP Server, DNS Client and NAT functions, providing powerful high-speed routing capabilities.
• Rich security services provide immediate protection against potential security risks and illegal intrusions.
• Web-based management is convenient and intuitive.
• With perfect network management function, system management, monitoring and maintenance can be completed in the network management system.

                 Hardware Specification

                 Software Specification
