Unity™ 4+5G Indoor Femtocell
With the gradual development of 5G wireless network construction, indoor coverage is becoming more and more important in 5G applications. At the same time, compared with the 4G network, 5G uses a higher frequency band, its diffraction ability and penetration ability is weak, and it is easy to be interfered at long distances. Therefore, 4+5G indoor small base stations will be extensive used in 5G construction
SageRAN Unity™ 4+5G Indoor Small Cell with features of low power consumption, easy customization, and high integration. It can be deployed at the spaces where macro cell wireless network service cannot cover, eg. the high-density population area, and effectively improve QoS of 4+5G network.
- Self-developed 5G RAN L2/L3 software

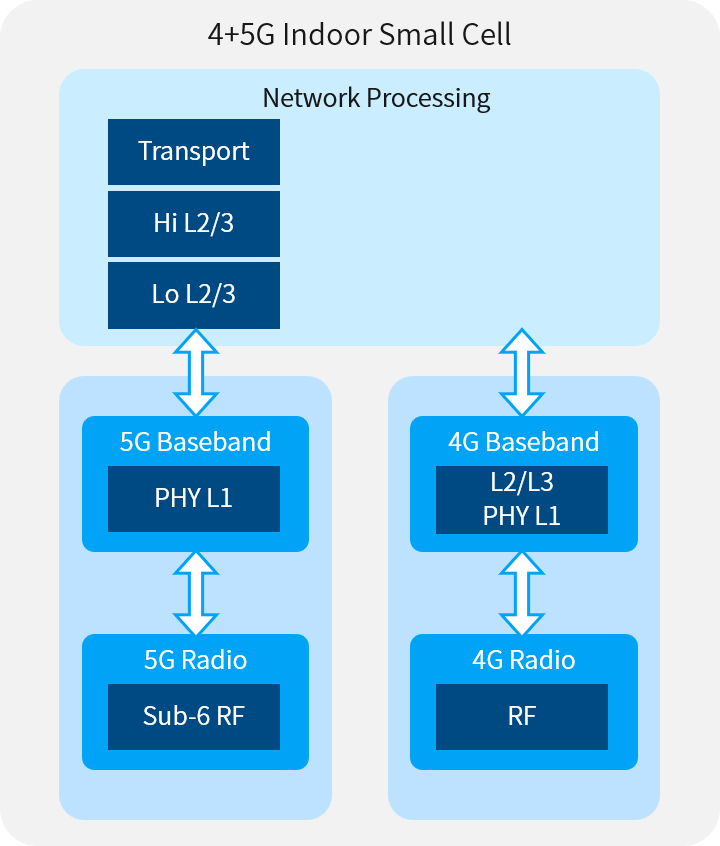

- All-in-one design, integrated baseband with radio units
- Easy to deploy, low power consumption, low maintenance cost
- Support multi-synchronization: GPS, BEIDOU, 1588V2Easy product management, monitoring and maintaining with OAM system
- Also support 5G 128 active users, 4G 64 active users per cell
System Specifications
Item |
Specification |
5G |
|
Standard |
3GPP R15 |
Networking |
SA |
Duplexing |
TDD |
Frequency |
N78:3300-3600MHz |
Carrier Bandwidth |
40/60/80/100MHz |
SCS |
30kHz |
Modulation |
256 QAM/64 QAM (DL/UL) |
Rated Power |
24dBm±1.5dBm/Channel |
EVM |
64 QAM,≤5% |
Uplink sensitivity |
<-96dBm |
MIMO |
2T2R, DL 2Layer, UL 2Layer |
Capability |
1*100MHz 2T2R cell |
NR Peak Data Rate |
Support Multi-SSC DL 800Mbps,UL 400Mbps |
User Capability |
128 Active User/Cell 128 Connected User/Cell |
4G |
|
Duplexing |
FDD |
Frequency |
B3: UL: 1755-1765MHz DL: 1850-1860MHz |
Carrier Bandwidth |
5/10/15/20MHz |
Rated Power |
21dBm |
MIMO |
2T2R |
Peak Data Rate (20MHz) |
DL: 150Mbps,UL: 75Mbps |
User Capability |
64 Active User/Cell |
Device Characteristics |
|
Synchronization |
GPS, IEEE 1588V2 |
Network management interface |
TR069 interface protocol |
QoS |
Support |
VoNR |
Support |
Operation and maintenance |
Support remote/local maintenance |
Supports online presence management |
|
Support performance statistics |
|
Support fault management |
|
Support configuration management |
|
Support for local or remote software upgrades and loading |
|
Log support |
|
Supports connectivity diagnosis |
|
Support alarm reporting |
|
Support KPI reporting |
